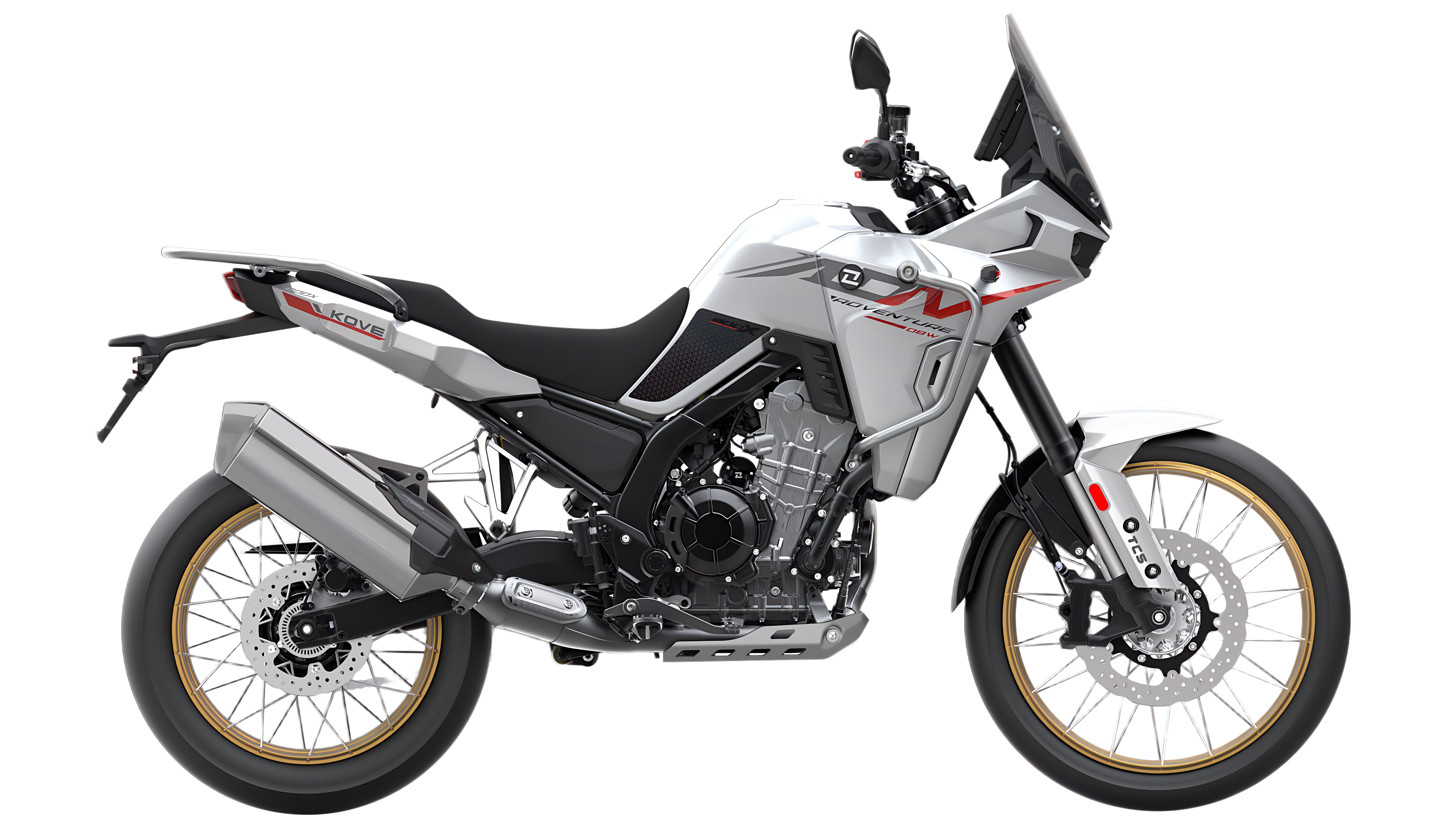

800X _ADV_MODEL

Technical specs

PRO
Standard

Dimension
Engine
Chassis

Length X Width X Height2238×880×1399mm
Wheelbase1510mm
Seat height875mm/865mm
Tank capacity20L
Curb weight185kg
Ground clearance275mm

Engine typeTwin cylinders, DOHC, liquid-cooled
Dispalcement799cc
Bore x stroke88×65.7mm
Compression ratio13:1
Max. power71KW/9000rpm
Max. torque80N.m/7500rpm
Fuel supplyEFI
Max. speed210km/h

Frame typeDiamond shape, dual-wing beam
Front suspensionKYB, pre-load/damping adjustable
Rear suspensionKYB, pre-load/damping adjustable
Front brakeDual discs, 4-piston opposed calliper/ABS
Rear brakeDisc, single piston calliper/ABS
Front tire Pirelli, 90/90-21
Rear tirePirelli, 150/70-18
Steering angle35°
Rake26.15°
InstrumentionTFT

Dimension
Engine
Chassis

Length X Width X Height2230×880×1380mm
Wheelbase1502mm
Seat height845mm
Tank capacity20L
Curb weight183kg
Ground clearance245mm

Engine typeDouble cylinder, DOHC, liquid-cooled, 8 valves, 75° crankshaft
Dispalcement799cc
Bore x stroke88×65.7mm
Compression ratio 13:1
Max. power71kw/9000rpm
Max. torque80N.m/7500rpm
Fuel supplyEFI
Max. speed210km/h

Frame typeDiamond shape, dual-wing beam, integrated chassis
Front suspensionφ43mm Preload adjustable damping, KYB
Rear suspensionPreload adjustable damping KYB
Front brakeDouble disc, 2-piston calliper/ABS
Rear brakeSingle disc, 1-piston calliper/ABS
Front tire90/90-21 CST
Rear tire150/70-R18 CST
Steering angle35°
Rake26.15°
InstrumentionTFT

Performance characteristics

The world’s lightest and most powerful ADV

The dual cylinder, vertical, DOHC water-cooled engine brings a maximum power of 71 kw/9000rpm, a maximum torque of 81 N.m/7500 rpm, and a maximum speed of 210km/h. The 20L fuel tank can guarantee a cruising range of 400km.

The world’s lightest and most powerful ADV

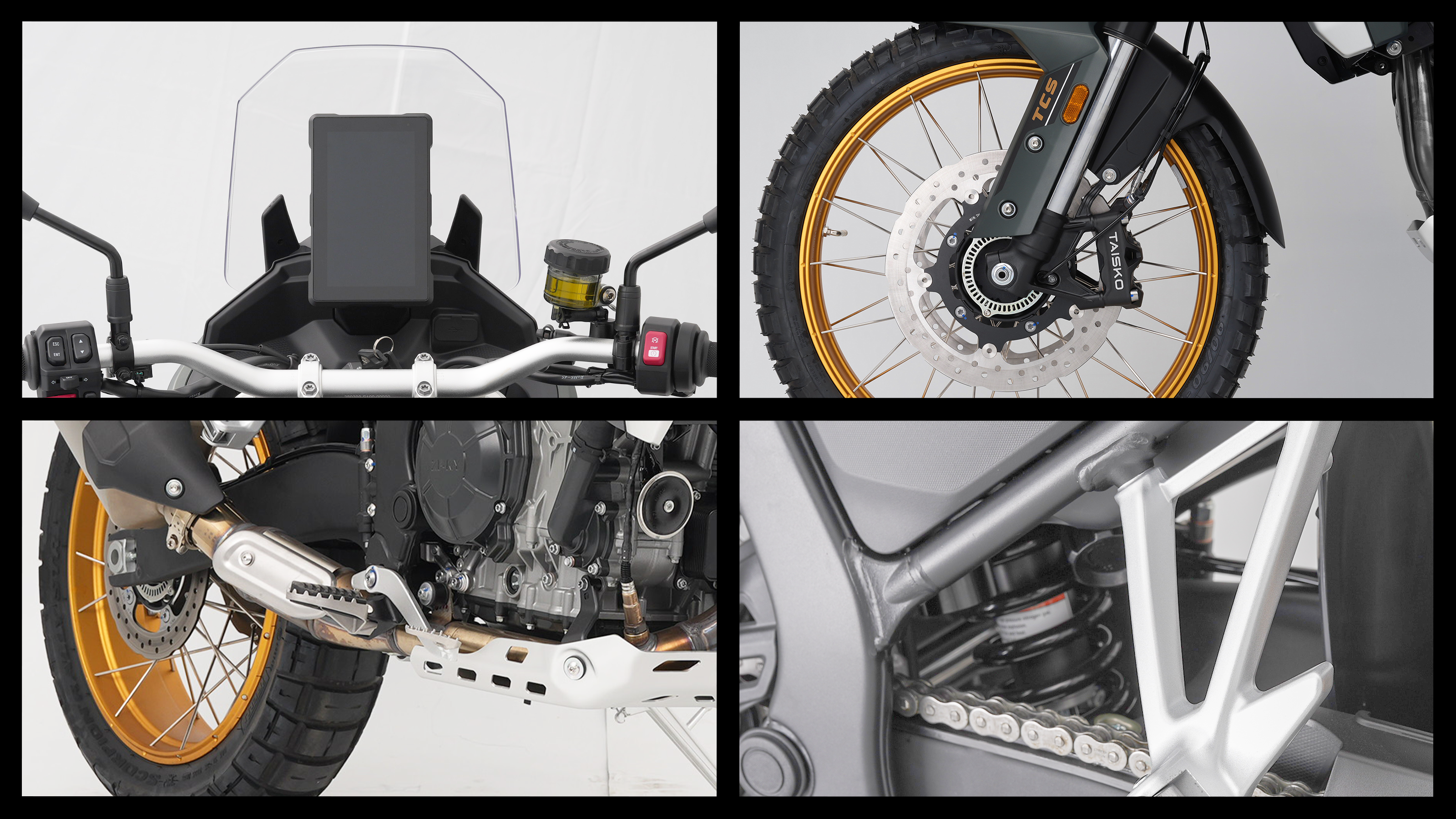

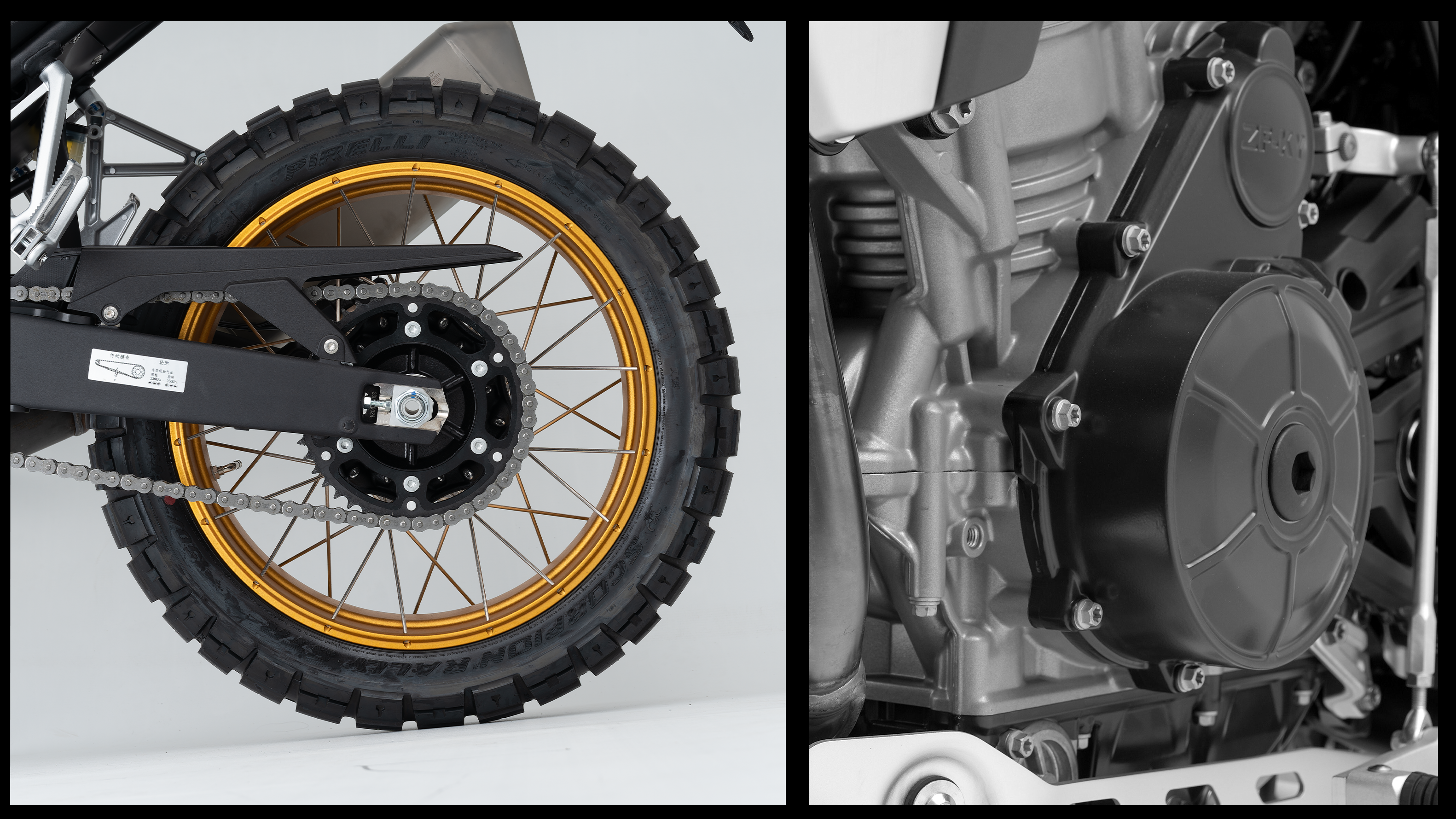

The ultra-long shock absorption travel is 210mm-240mm, the front wheel is 21 inches, the rear wheel is 18 inches and ground clearance is 275mm. And i think our motorcycle will inspire you to experience the passion and thrill of riding.

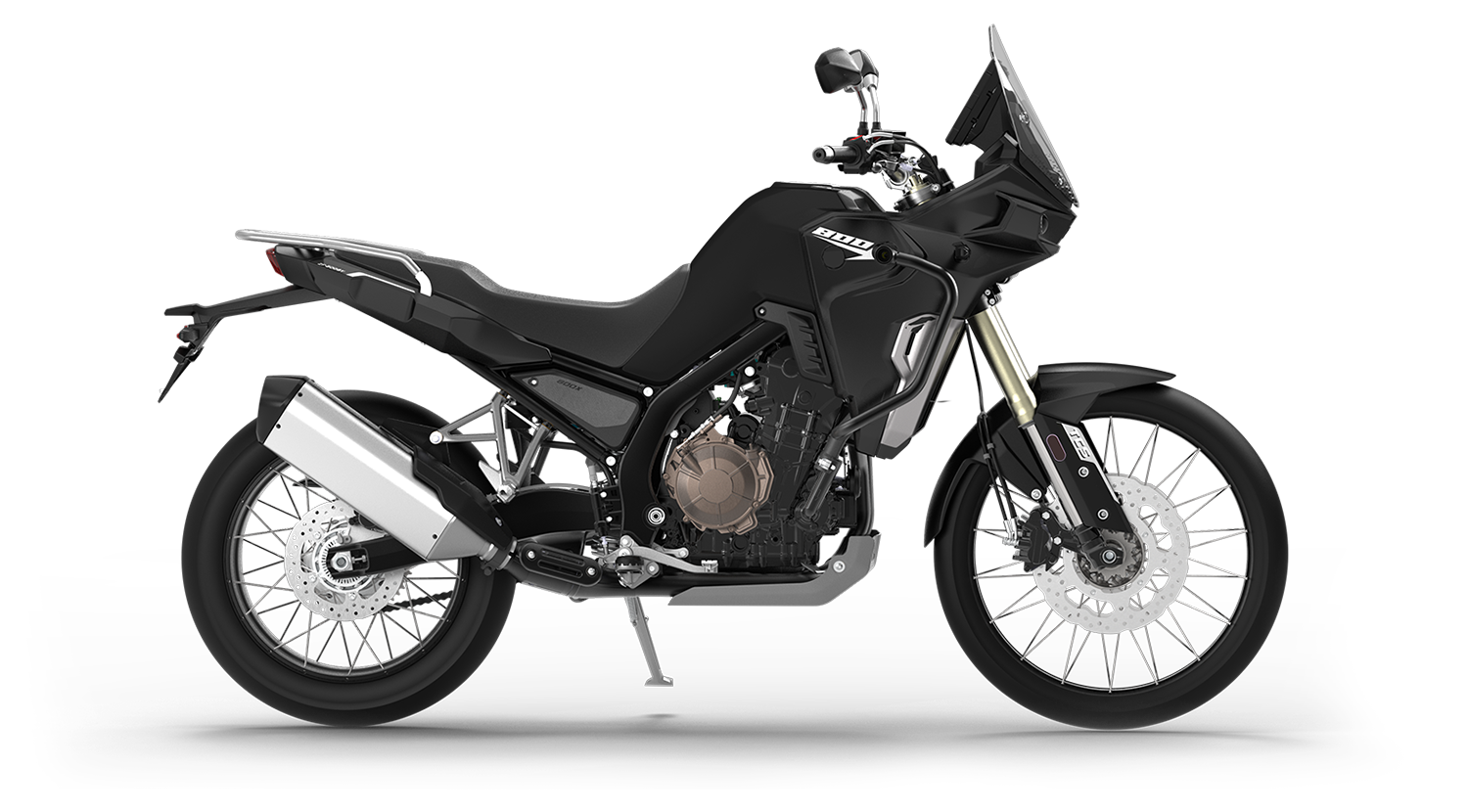

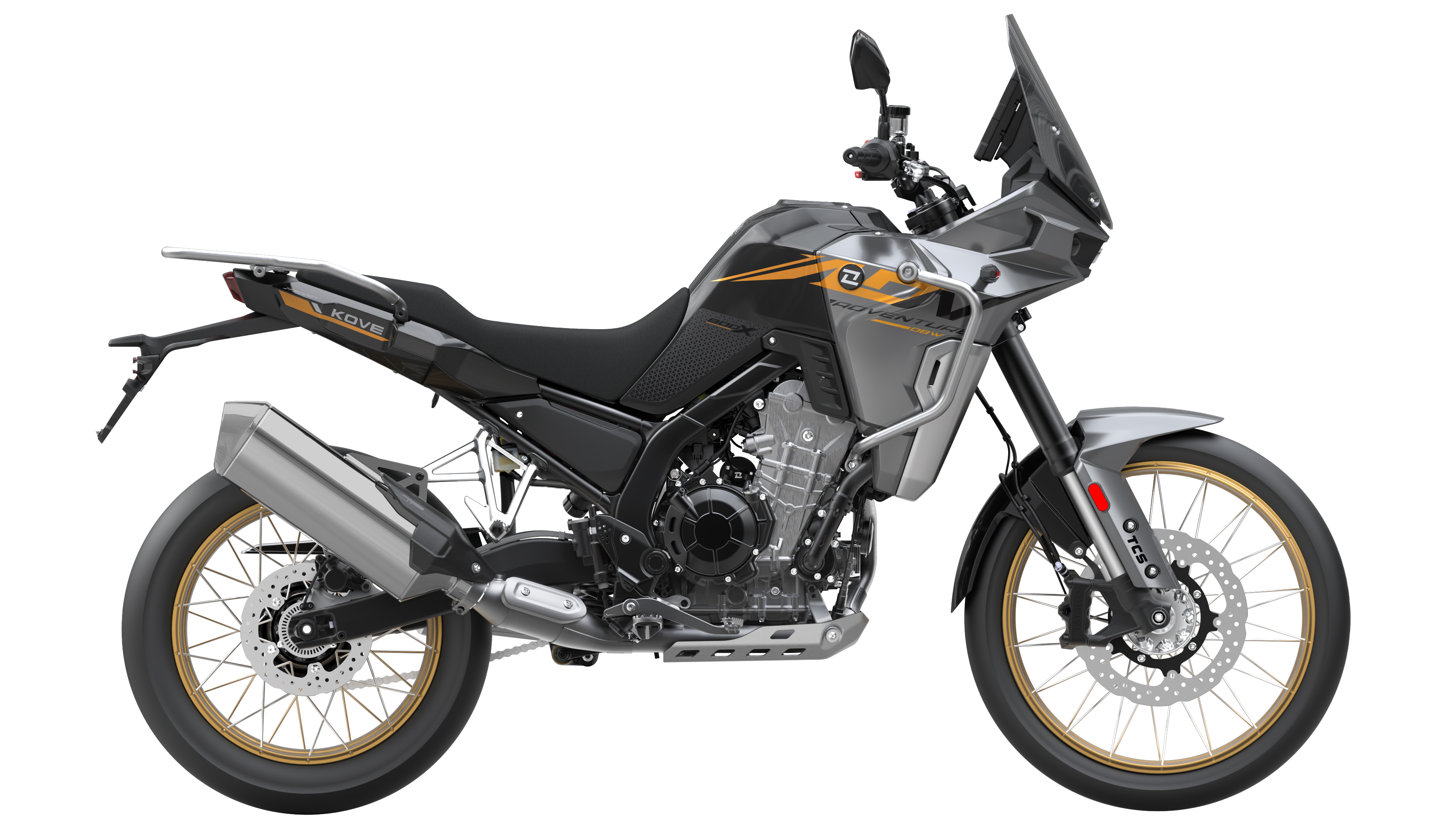

Color

The world’s lightest and most powerful ADV

The world’s lightest and most powerful ADV
